RS Push-Pull Props in action
Your benefits at a glance-

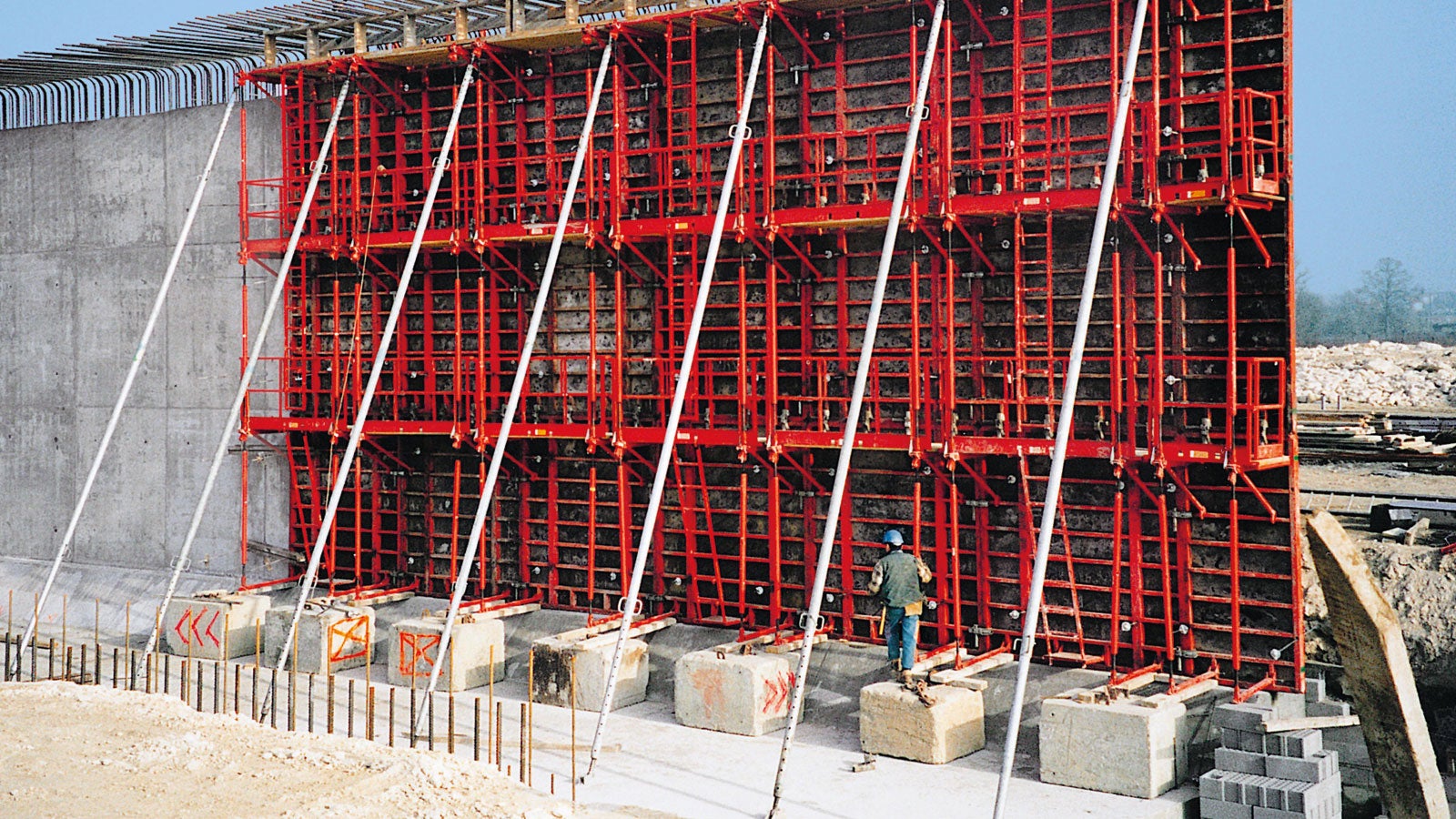

![RS Push-Pull Props: PERI push-pull props have been designed in particular regarding a long service life, low maintenance costs and easy handling.]( "RS Push-Pull Props - long service life")
Fast and safe handling: Rough adjustment and fine adjustment for realizing the appropriate length take place safely within seconds from the installation area.
Galvanized tubes and threads ensure permanent protection against corrosion and long service life.
-

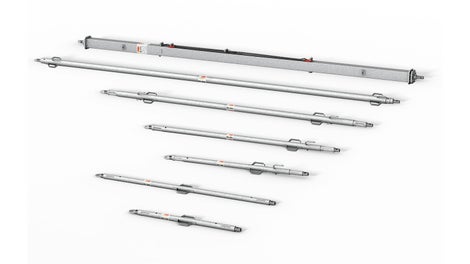

![RS Push-Pull Props: A complete programme, can be telescoped to reach a length of 14.00 m]( "RS Push-Pull Props")
Used also with prefabricated concrete elements. Push-Pull Prop Adapter and Quick Connector mounted from a safe position.
Product Data Sheet
System type
Props
Dimensions
Extension lengths: 1.30 m - 2.10 m (RS 210) | 2.30m - 2.60m (RS 260) | 1.90m - 3.00m (RS 300) | 2.80m - 4.50m (RS 450) | 4.30m - 6.50m (RS 650) | 6.40m - 10.00m (RS 1000) | 6.40m - 14.00m (RS 1400) | Rough adjustment in 10 cm grid
Material
Steel
Anti-corrosion and surface coating
Hot-dip galvanizing
Load
Tensile and compressive force: Pulling and pushing force: up to 28 kN
Other
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
Compatible with
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
Interested in using RS Push-Pull Props for your project?
Call us on +971 (0) 4 326 2992 to discuss your requirements further.
