LIWA, the lightweight wall formwork with cleverly designed corner solution

LIWA Panel Formwork

The simple lightweight steel panel formwork with the cleverly-devised corner panel

The simple lightweight steel panel formwork with the cleverly-devised corner panel

Overview

LIWA is the lightest PERI steel panel formwork and deliberately dispensed with more elaborate equipment features in favour of lower investment costs. LIWA has only a minimum of different panel elements. In addition, the perforated strip allows each panel to be used as a multi-purpose panel. This means that corners and columns can also be formed without requiring any special panels. LIWA is a marketoriented solution if, for example, users are working with system formwork for the first time.

Very few different components
Only 4 panel widths, and each standard panel is simultaneously a multi-purpose panel

Simple design
With powder-coated flat steel frames, a minimum of formwork guidelines and simple connecting means

Can also be used without a crane
Can be installed by hand – also the 75 Panel

Cleverly-devised system for corners, wall connections and T-junctions
Geometrical adjustments with very few components

Applications

Lightweight wall formwork with cleverly designed corner solution

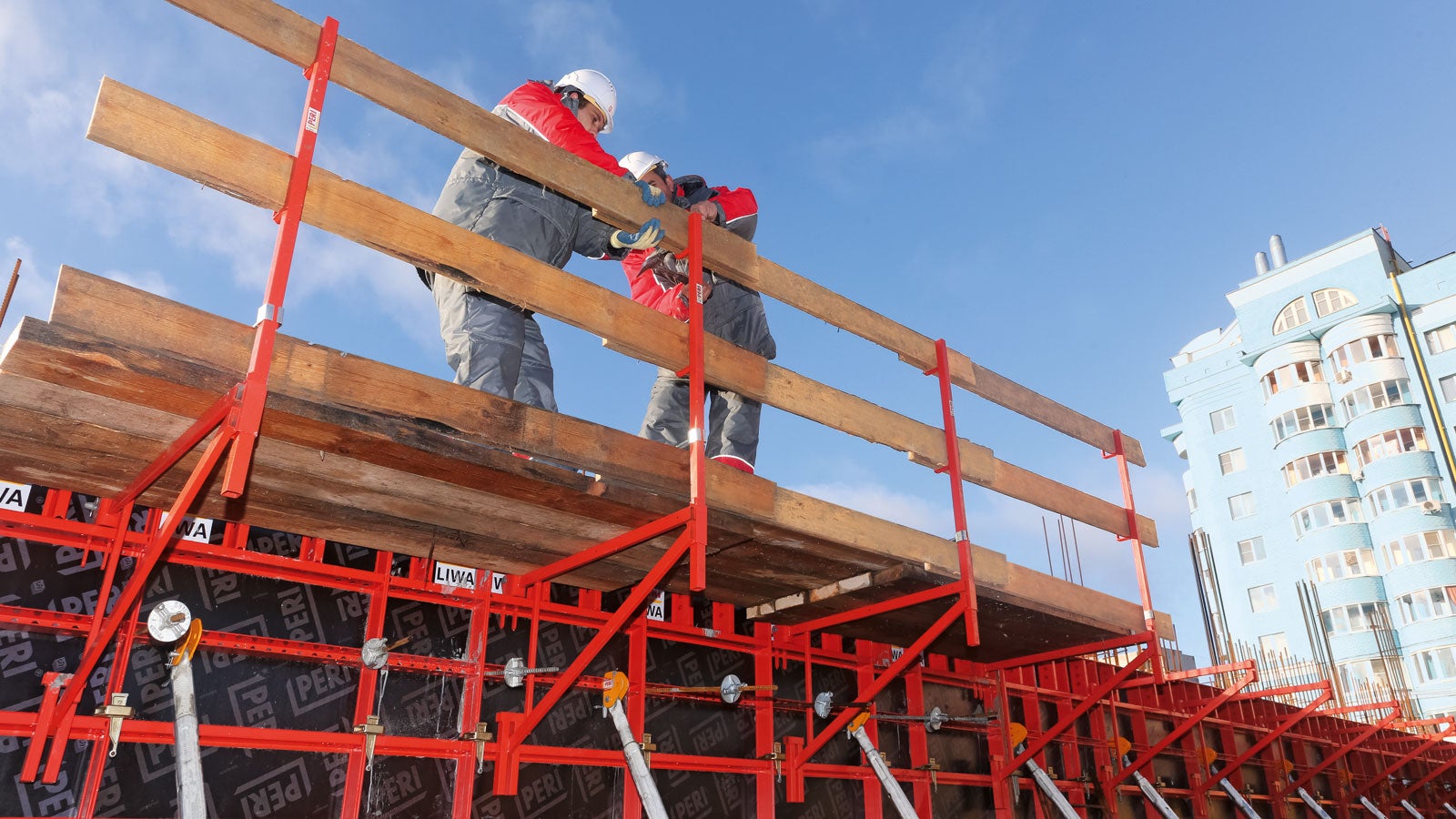

The product range includes comprehensive safety equipment such as scaffold brackets or opposing guardrails.

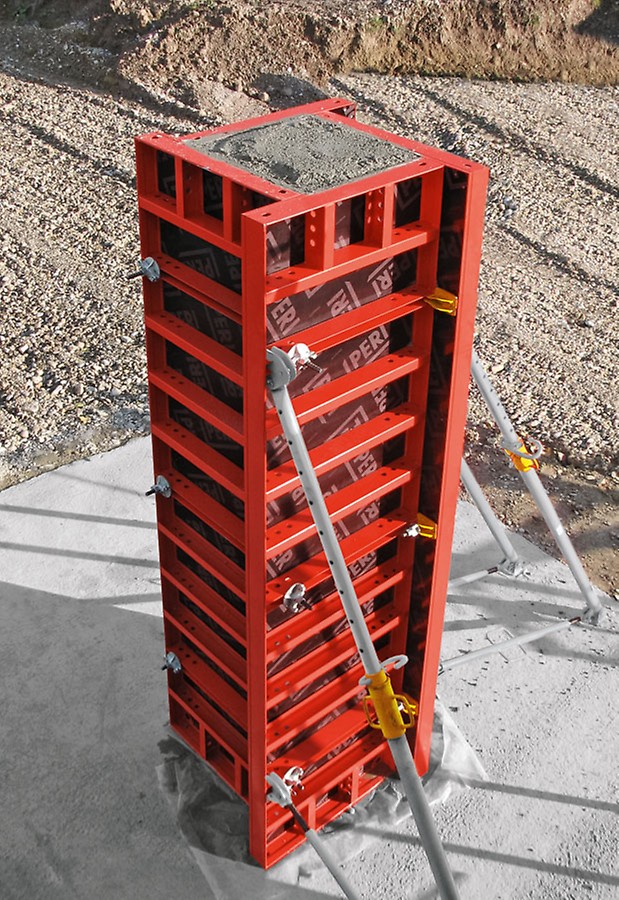

With the multi-purpose panels, columns up to 55 cm x 55 cm can also be formed in 5 cm increments.
