LICO: Lightweight column formwork for cost-effective forming by hand

LICO Column Formwork

The lightweight column formwork for cost-effective forming by hand.

With its low individual panel weights and simple frame construction of the panels, LICO is ideal for assembling and dismantling by hand. This column formwork is the right choice if lower surface requirements are to be fulfilled and when the emphasis lies on economic efficiency.

Cost-effective column formwork
with simply constructed steel frames for working without the use of a crane

Easy and simple assembly
with only 3 panel heights and connecting means which are permanently attached to the panels and cannot be lost

Ring bolts on all panels
serve as load bearing points for moving with the crane as well as for panel connections when extending

Product Data Sheet

Technical specifications

System type

Panel Formwork

Area/Support

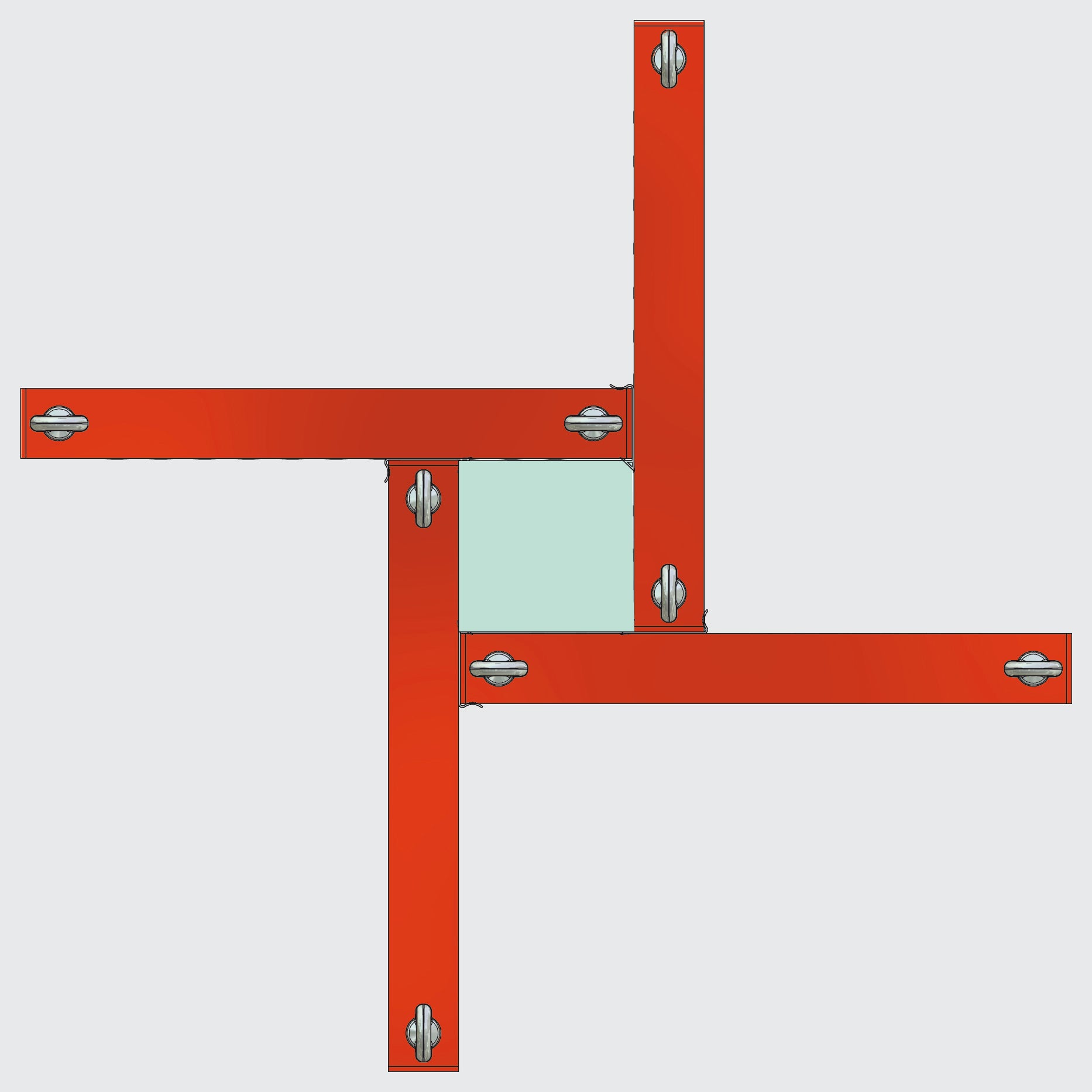

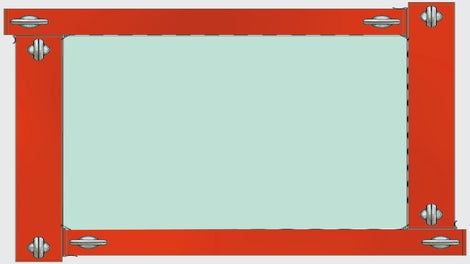

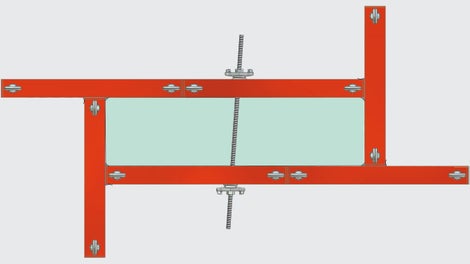

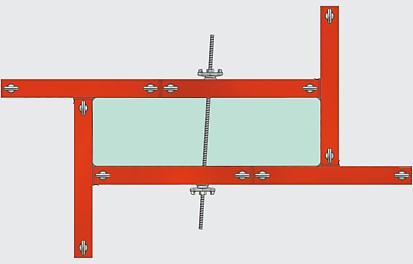

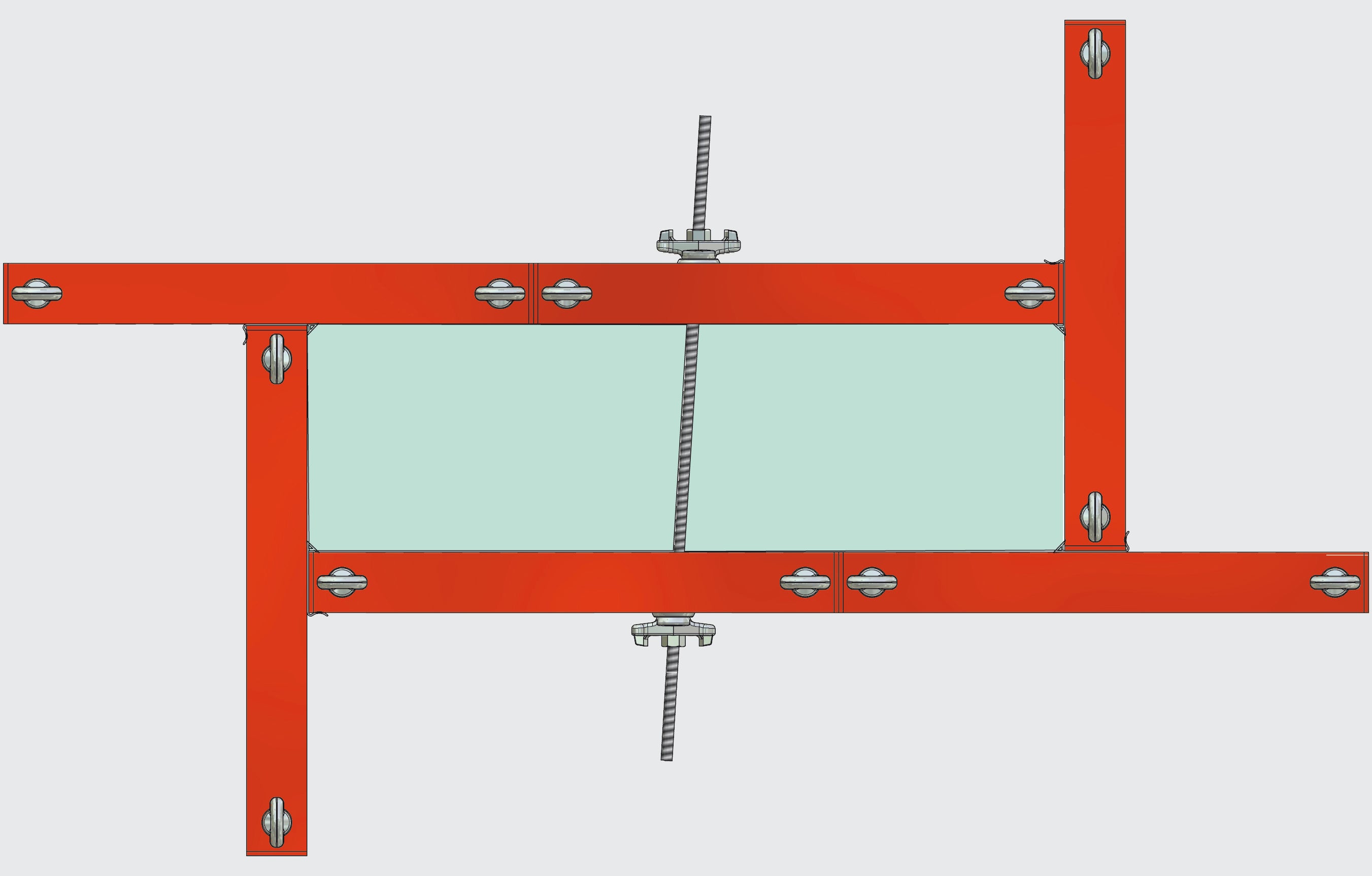

For square and rectangular cross-sections from 20 cm x 20 cm up to 60 cm x 60 cm in 5 cm increments. Larger cross-sections with additional ties. Height adjustments up to maximum 4.50 m in 50 cm increments with 3 different panel heights (0.50 m / 1.00 m / 3.00 m). Panel connection when extending by means of ring bolts on the panels that also serve as crane suspension.

Fresh concrete pressure

80 kN/m²

Material

Steel and aluminium

Anti-corrosion and surface coating

High level of corrosion protection thanks to galvanizing and powder coating on the inside

Load

Allowable column load: Maximum permissible fresh concrete pressure 80 kN/m²

Other

Powder coating of the element frames prevents concrete from sticking and makes cleaning easier.

Technical specifications

System type

Panel Formwork

Area/Support

For square and rectangular cross-sections from 20 cm x 20 cm up to 60 cm x 60 cm in 5 cm increments. Larger cross-sections with additional ties. Height adjustments up to maximum 4.50 m in 50 cm increments with 3 different panel heights (0.50 m / 1.00 m / 3.00 m). Panel connection when extending by means of ring bolts on the panels that also serve as crane suspension.

Fresh concrete pressure

80 kN/m²

Material

Steel and aluminium

Anti-corrosion and surface coating

High level of corrosion protection thanks to galvanizing and powder coating on the inside

Load

Allowable column load: Maximum permissible fresh concrete pressure 80 kN/m²

Other

Powder coating of the element frames prevents concrete from sticking and makes cleaning easier.

Show Less

Additional information

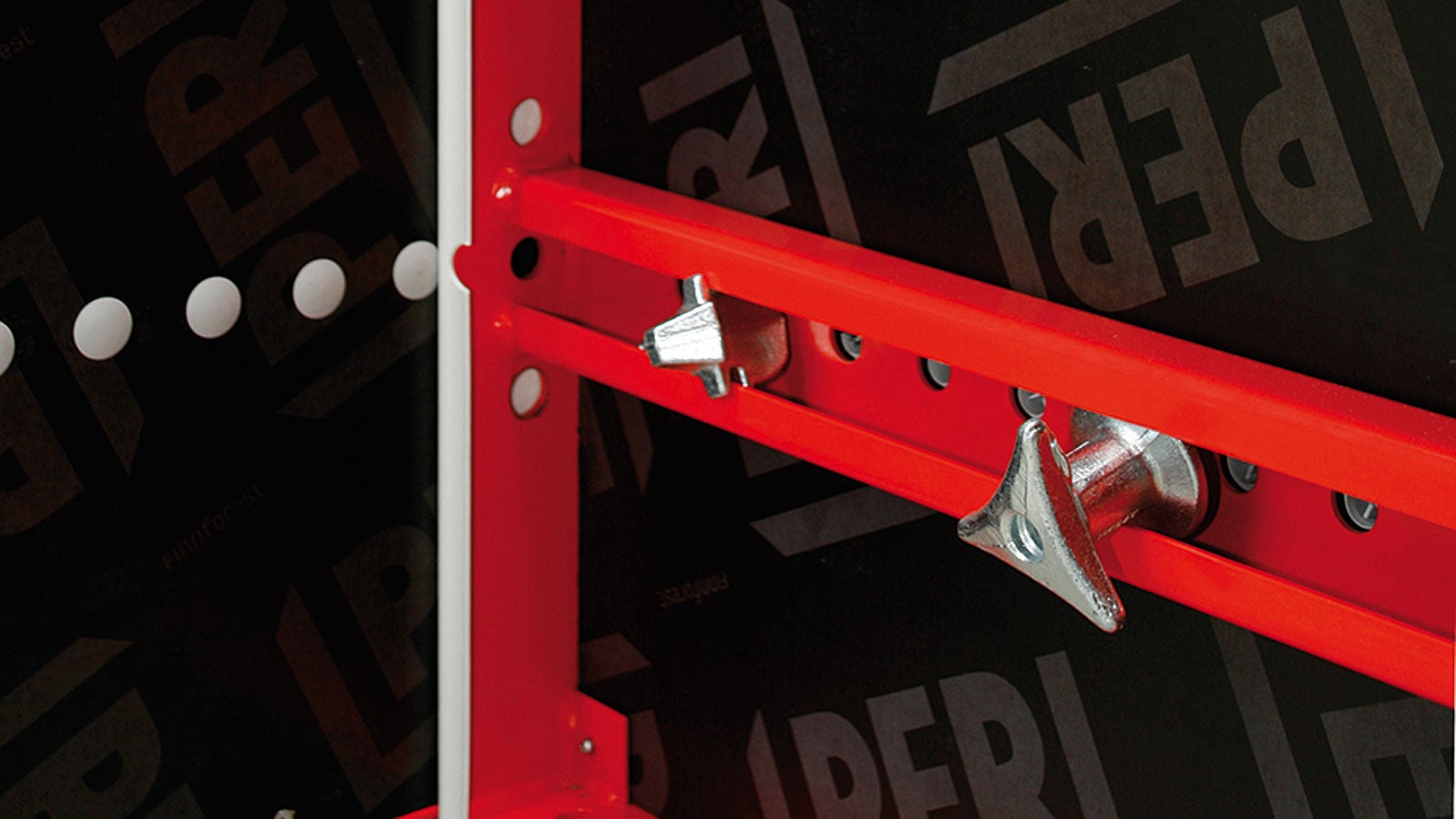

The LICO column tie bolts and nuts are permanently attached to all panels and cannot be lost.

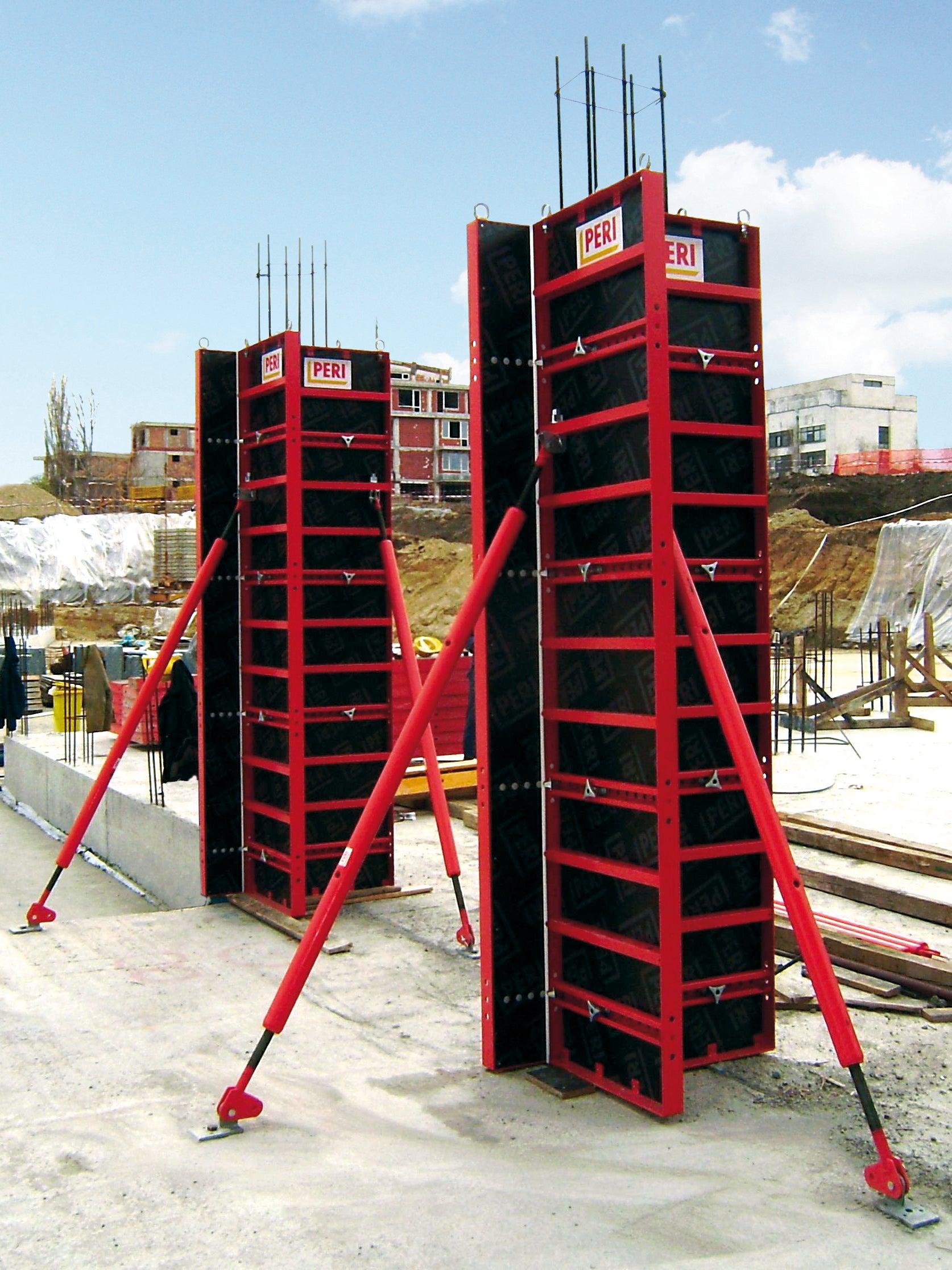

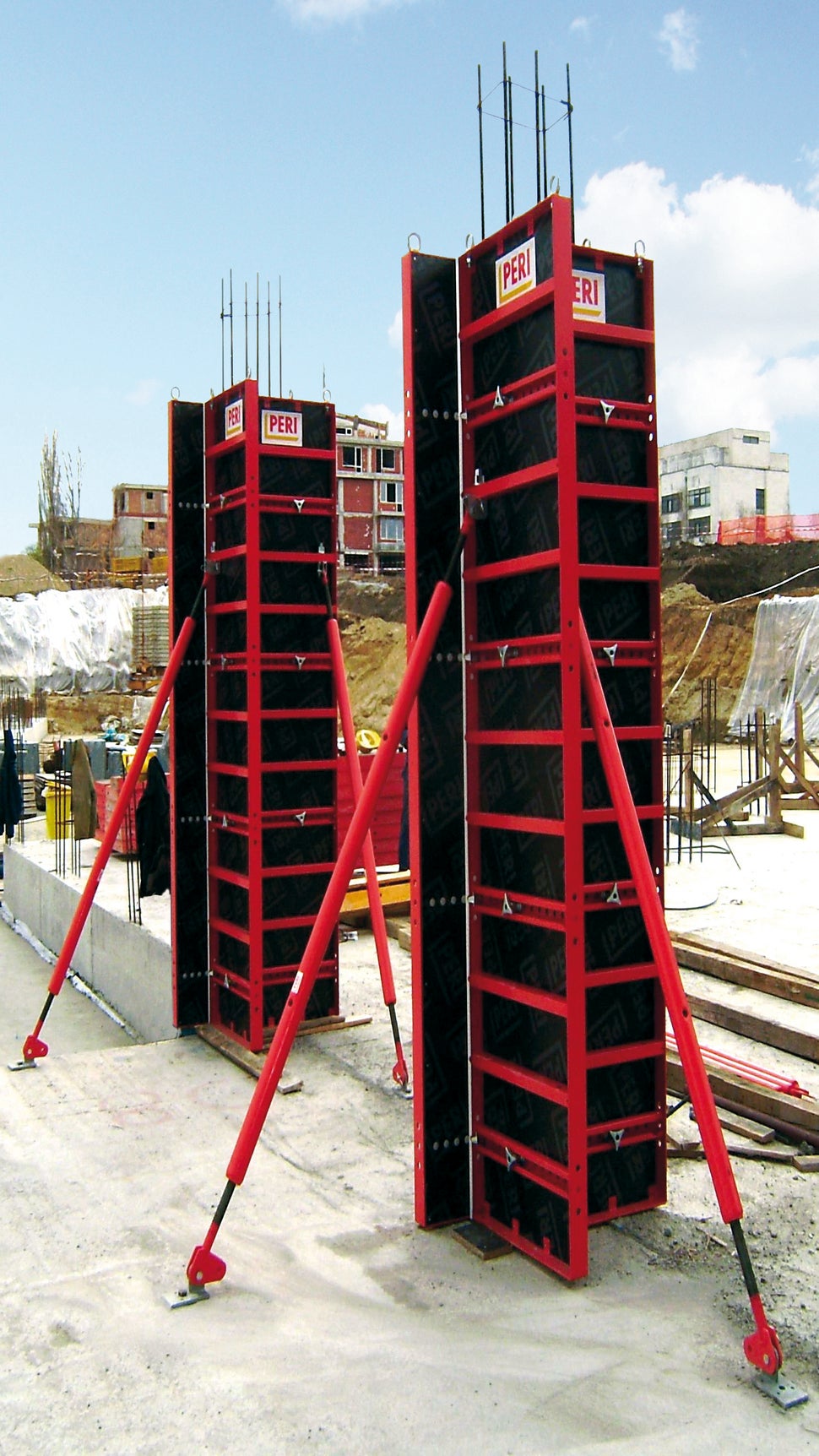

LICO, the lightweight column formwork for cost-effective forming also without a crane.

The low individual weights of the elements allow assembly and dismantling by hand. This means that the formwork crew is still in a position to effectively use crane non-availability in a productive way.

Practical details simplify the use and lower shuttering times. The high permissible fresh concretepressure of 80 kN/m2 ensures fast concreting cycles and thus contributes to a very economical utilization of the equipment.

Captive column tie bolts and nuts are permanently attached to each element.

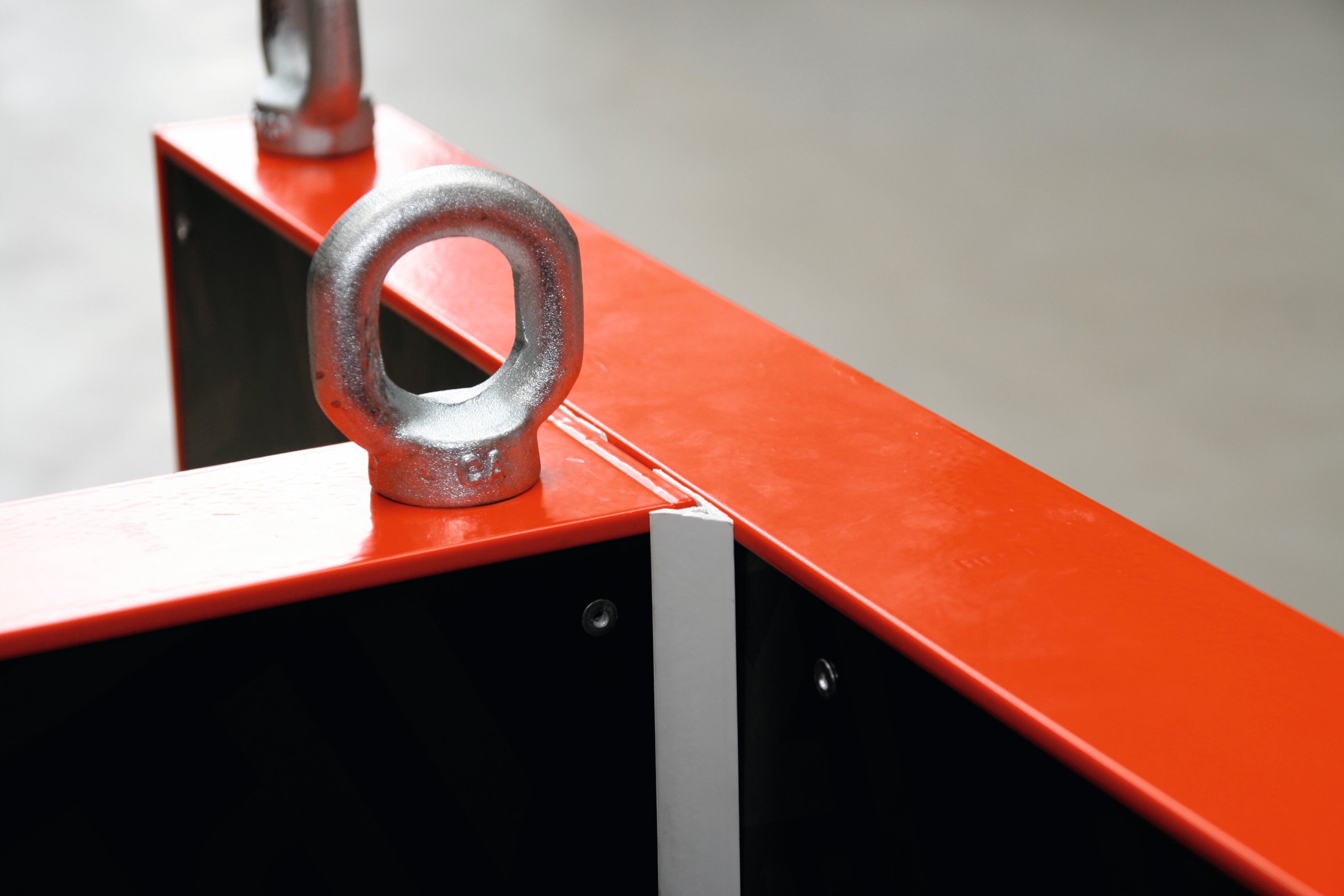

Eye bolt as load bearing point for moving as well as easy and simple extensions.

LICO chamfer strip, Item no. 111975, is simply attached to the front side of the element.
