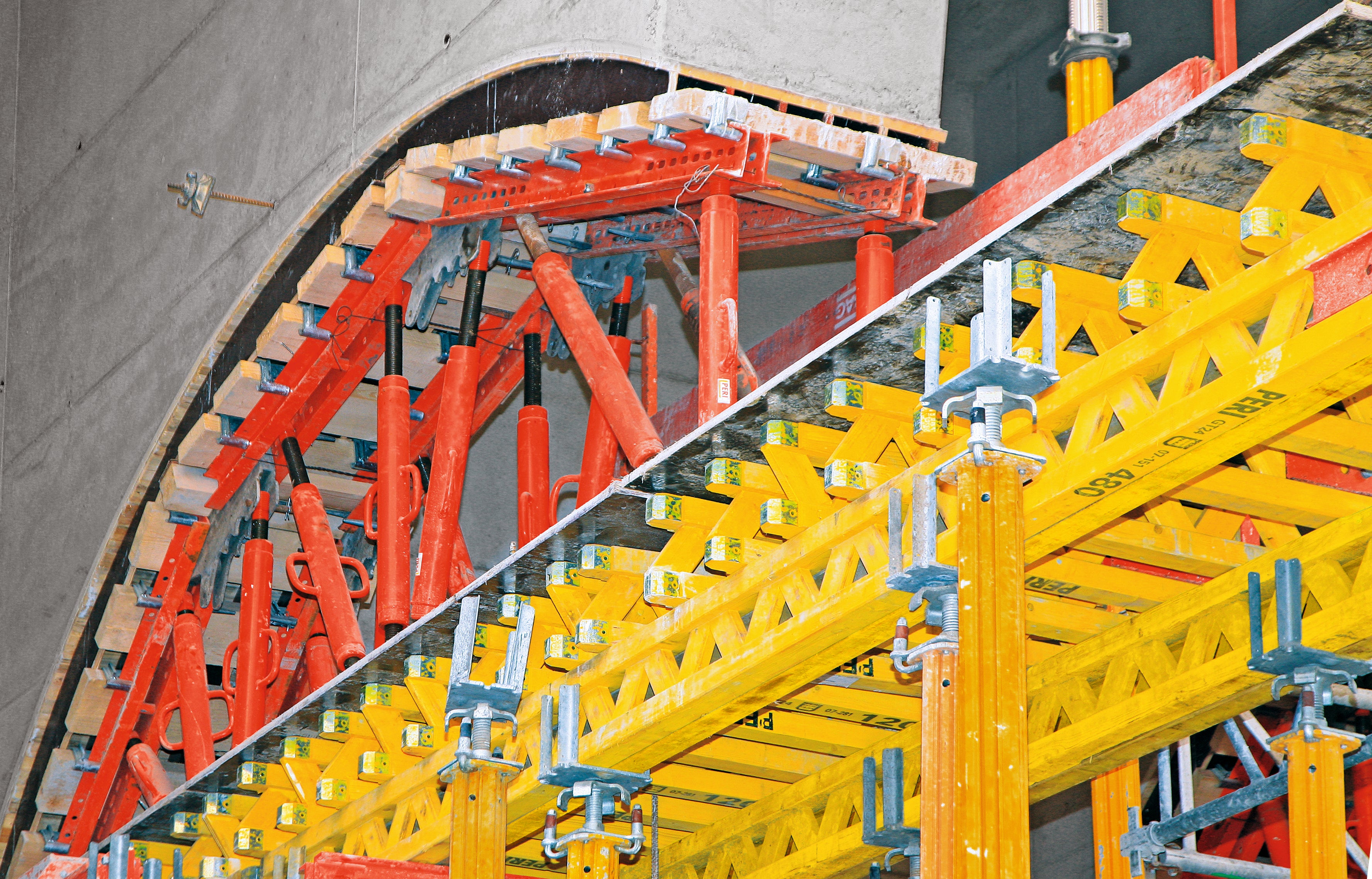

GT24 Girder in action
Your benefits at a glance-
Durable

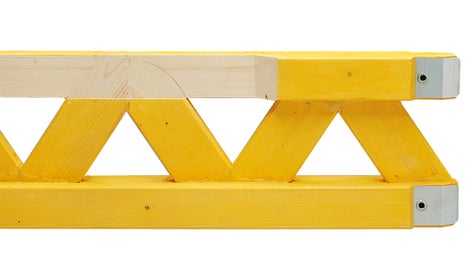

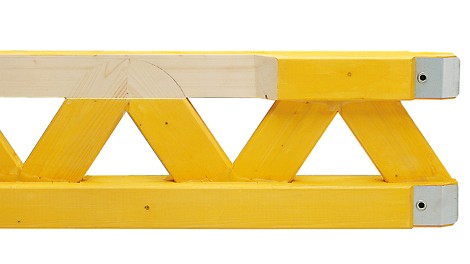

Robust design, girder nodes with mini dovetail jointing, no trapped pockets of moisture.
-
High load-bearing
As lattice girder with a 24 cm overall height for heavy loads and wide spans.
-
Compatible
Easy connection of site accessories through the latticework construction.
Product Data Sheet
System type
Wooden Formwork Beam
Dimensions
Height: 24 cm,
Spread: 8 cm
Weight
5,4 kg/m
Load
Permissible shear force: 13,0 kN,
Permissible bending moment: 7,0 kNm,
Allowed bearing strength: 28 kN
