RS Push-Pull Props: PERI push-pull props have been designed in particular regarding a long service life, low maintenance costs and easy handling.

Props

PERI formwork girders offer both a high level of load-bearing capacity and bending stiffness. PERI also offers various solutions for slab support with products made of steel or aluminium.

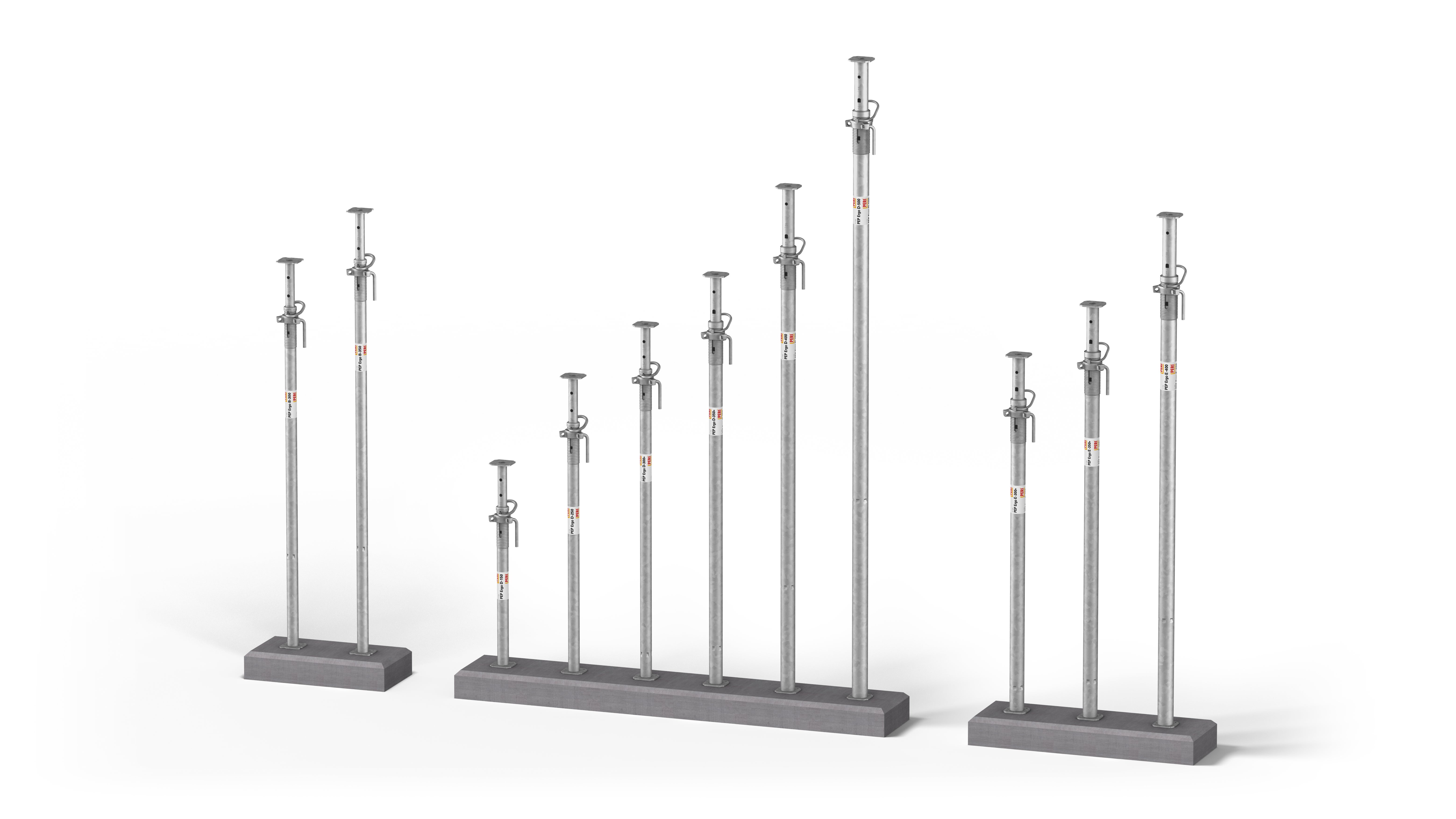

  • PEP Alpha & Ergo Slab Props flyer
    PEP Ergo Props

    Details

    • Fully galvanized tubular steel slab props for transferring vertical loads
    • Maximum prop load: 50 kN
    • Building authority approved (PEP Ergo) | type-tested (PEP 20, PEP 30)
    • Prop lengths: up to 1.50 m | 2.50 m | 3.00 m | 3.50 m | 4.00 m | 5.00 m
    • Generous adjustment range of 12 cm
    • Total length stamped on inner tube in 10-cm increments to the pegging holes
    • Tripods or frames available as installation aids
    • Anti-crush device with a safety clearance of 10 cm provides protection against injury
    • Prop type and length can be read directly from the outside on the end plate, also on stacks of props
  • The crosshead, providing stable support for girders

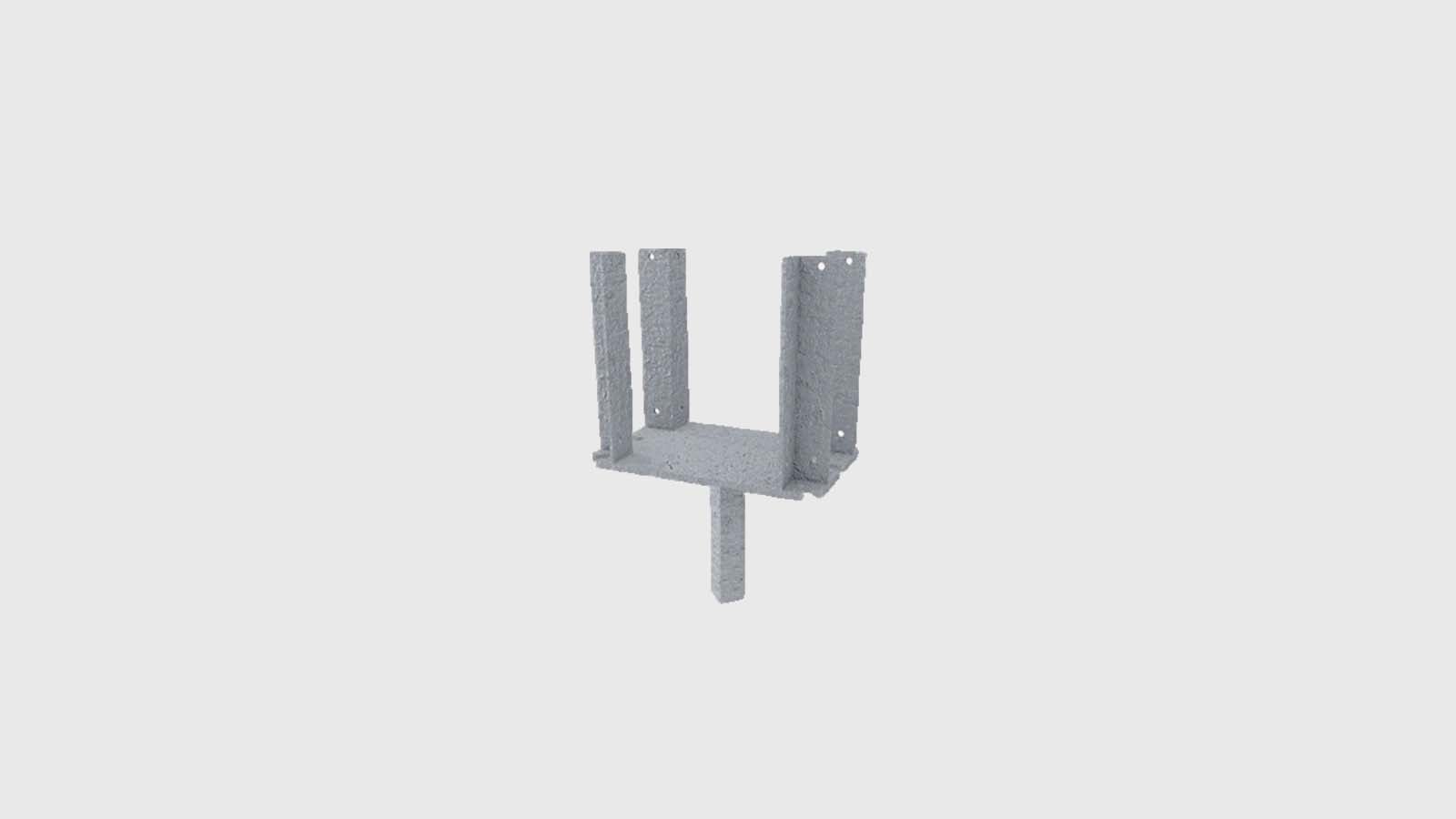

    Crosshead

    Details

    • For single or twing GT24 or VT20
    • Required hole in endplate Ø40 mm
    • With or without self-locking coupling
    • Usable on both ends of props
    • Galvanized
  • Ergo tripod, the erection aid for slab props

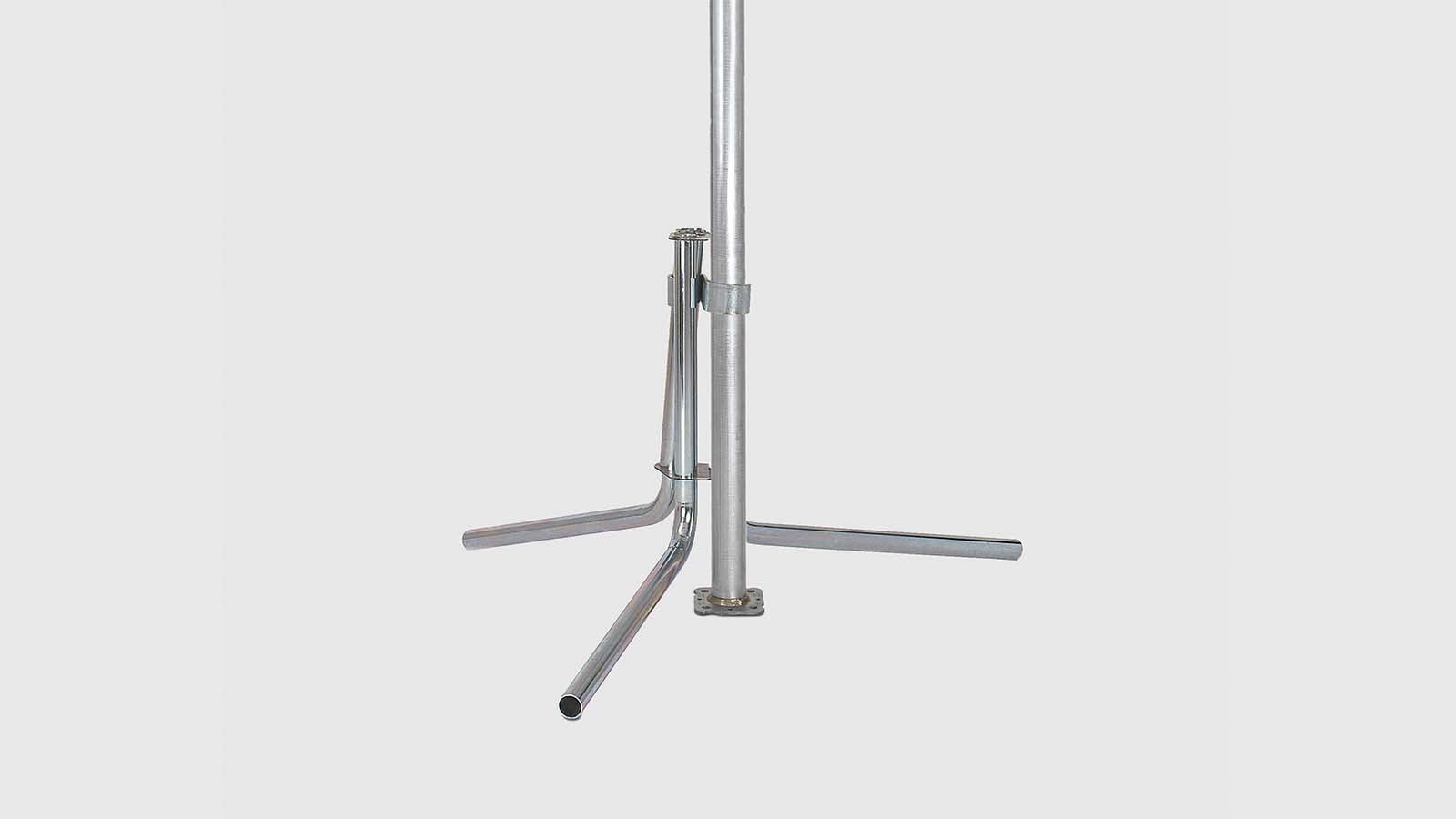

    ERGO Tripod

    Details

    • For props Ø 44 - 64 mm
    • Galvanized
    • Weight: 5.81 kg / Height: 639 mm
  • The PT crosshead, providing stable support for VT20 girders

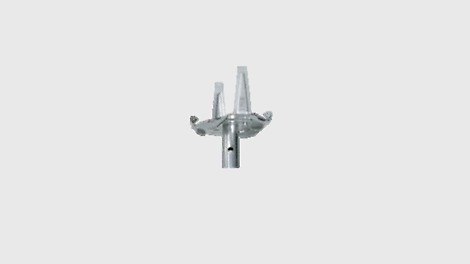

    PT Crosshead

    Details

    • For single or twin VT 20 main girders
    • With self-locking mechanism
    • For overlapping joints
    • Galvanized
    • Weight: 1.43 kg
  • Universal tripod, the erection aid for slab props

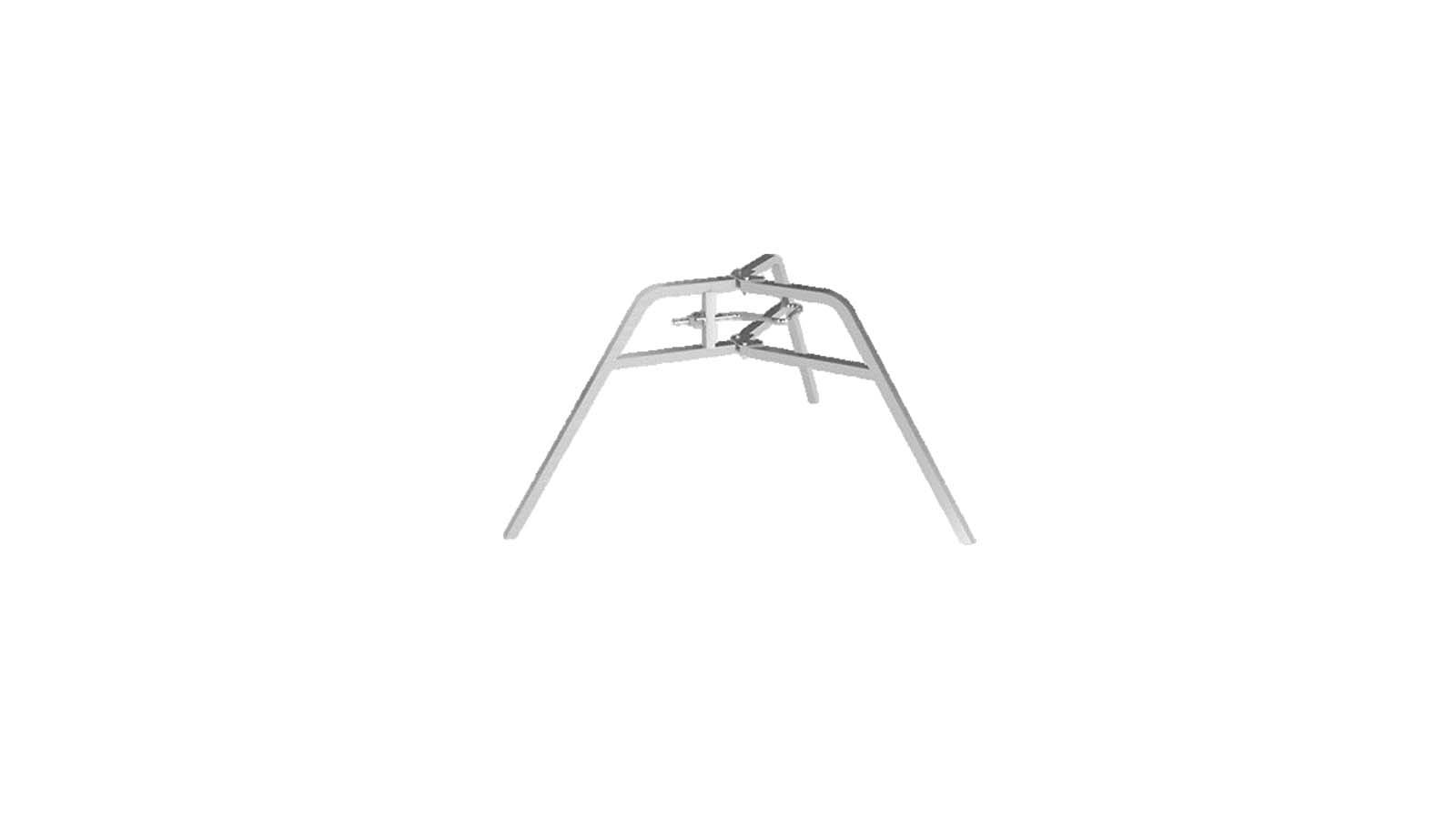

    Universal Tripod

    Details

    • For props Ø 48 - 120 mm
    • Galvanized
    • Weight: 9.17 kb / Height: 800 mm
